Ultimaker S3, S5 - Adaptor C Setup

Written By: Adalyn Ordono

Comments: 0
Favorites: 0

Difficulty

Moderate

Steps

Time Required

00:15:00 - 00:25:00

Introduction

This installion uses the 1.75mm Adaptor C

Step 1 Bowden tube replacement

How to replace the Ultimaker bowden tube with the PTFE tube used for 1.75mm filament.

How to replace the Ultimaker bowden tube with the PTFE tube used for 1.75mm filament.

Step 2 Install the short hot-end PTFE sleeve

How to install the short hot-end PTFE sleeve into the hot-end.

How to install the short hot-end PTFE sleeve into the hot-end.

Step 3 Swap the extruder drive arm

How to swap the extruder drive arm in the Ultimaker filament feeder on the back of the printer.

How to swap the extruder drive arm in the Ultimaker filament feeder on the back of the printer.

Step 4 Install the Palette tube into the Extruder Input

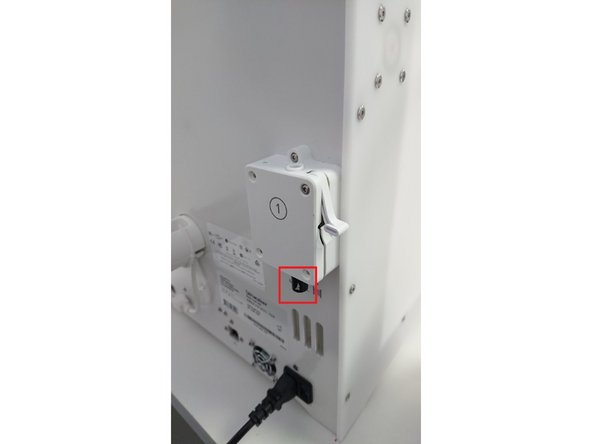

Install the Palette tube into the extruder input

Step 5 Single Color Test

Run a test print using 1.75mm filament to see if the adaptor installation is done correctly.

Run a test print using 1.75mm filament to see if the adaptor installation is done correctly.

Step 6 Palette Calibration with Ultimaker S3 or Ultimaker S5

Please proceed to the calibration guide.
