Ultimaker 2+, 2+ EXT - Adaptor Setup

Written By: Adalyn Ordono

Comments: 0
Favorites: 0

Ultimaker 2+, 2+ EXT - Adaptor Setup

Difficulty

Moderate

Steps

6

Time Required

00:15:00 - 00:25:00

Introduction

This installation uses the 1.75mm Adaptor A

Step 1 Bowden tube replacement

How to replace the Ultimaker bowden tube with the PTFE tube used for 1.75mm filament.

How to replace the Ultimaker bowden tube with the PTFE tube used for 1.75mm filament.

Step 2 Install the short hot-end PTFE sleeve

How to install the short hot-end PTFE sleeve into the hot-end.

How to install the short hot-end PTFE sleeve into the hot-end.

Step 3 Swap the extruder drive arm

How to swap the extruder drive arm in the Ultimaker filament feeder on the back of the printer.

How to swap the extruder drive arm in the Ultimaker filament feeder on the back of the printer.

Step 4 Install the Palette tube into the extruder input

Install the Palette outgoing tube into the filament feeder or extruder input.

Install the Palette outgoing tube into the filament feeder or extruder input.

Step 5 Single Color Test

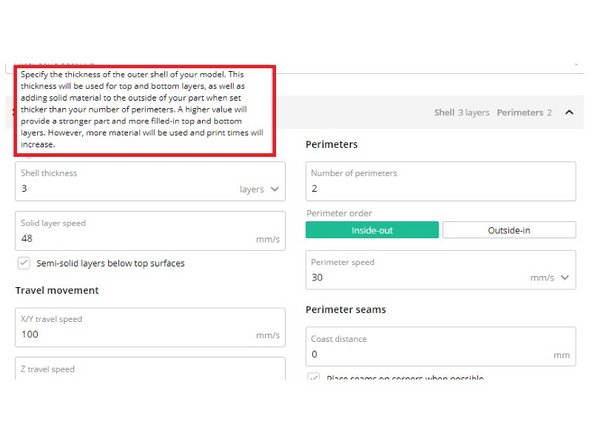

Run a test print using 1.75mm filament to see if the adaptor installation is done correctly.

Run a test print using 1.75mm filament to see if the adaptor installation is done correctly.

Step 6 Palette 2 Calibration with Ultimaker 2+ or Ultimaker 2+ EXT

Please proceed to the calibration guide.
