  1. Remove Palette's top lid.
    • Remove Palette's top lid.

    • Remove the 4 thumbscrews from the buffer area and remove the acrylic cover.

  2. Remove the PTFE tube from fasteners and lift the collet before removing the entire buffer tube along with the brass retainer.
    • Remove the PTFE tube from fasteners and lift the collet before removing the entire buffer tube along with the brass retainer.

  3. Install the collet onto the new PTFE tube and then the brass retainer. Place the brass retainer end into the gap by the outgoing drive. Reinstall the collet and slowly re-align the tube into the grooved and fastened areas. Snap the tube back into place, following along the buffer area and towards the scroll wheel. Replace the acrylic cover, thumbscrews, and top lid.

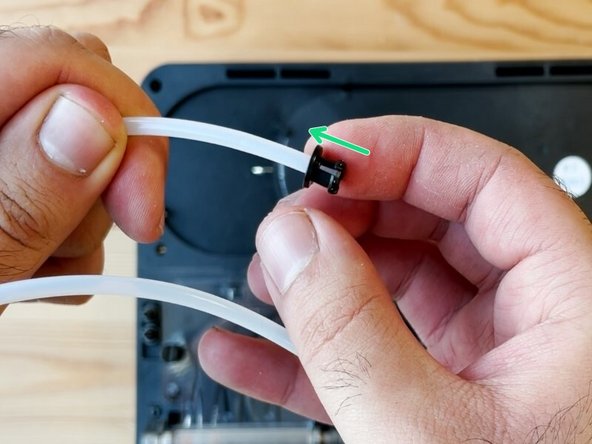

    • Install the collet onto the new PTFE tube and then the brass retainer.

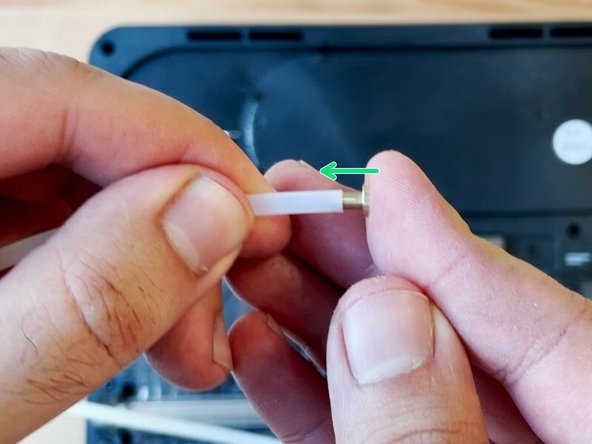

    • Place the brass retainer end into the gap by the outgoing drive. Reinstall the collet and slowly re-align the tube into the grooved and fastened areas. Snap the tube back into place, following along the buffer area and towards the scroll wheel.

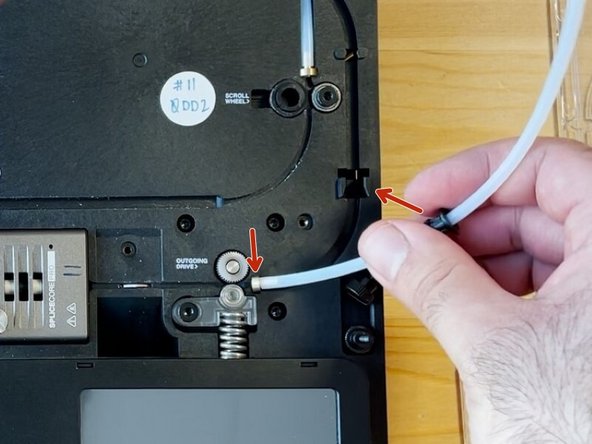

    • Replace the acrylic cover, thumbscrews, and top lid.
