Canvas is a cloud and web-based application designed for multi-material 3D printing.

Canvas allows you to color and slice single or multi-color models.

This guide provides an overview to get started with Canvas for use with any Palette model.

For a guide for using Canvas with Element/Array, please click here instead.

  1. Visit Printers and click on New Printer
    • Visit Printers and click on New Printer

    • Printer profiles can be 1) created as a new profile 2) imported from Simplify3D, Slic3r/Prusaslicer, or Kisslicer and 3) based off of a printer preset.

    • Custom start and end sequences for bed leveling can be copied into the printer profile.

    • Please see here for more information on how to create a new printer profile.

    • After creating a new printer profile, there will be the option to create a setup for that profile. If this step is skipped, a new setup can still be manually created afterwards.

  2. Style profiles are slicer settings. Multiple profiles can be created for various printing results.
    • Style profiles are slicer settings. Multiple profiles can be created for various printing results.

    • Importing a printer profile from another slicer will create a new style profile based on existing settings.

    • Creating a new style profile will automatically populate the settings. It would be recommended to run a single-color test print with these settings and further tuning the profile afterwards (e.g. extrusion widths, layer heights, speeds)

    • Printer tagging allows for common settings to appear when hovering over tooltips for each project setting.

    • Please see here for more information on creating a style profile and the settings glossary.

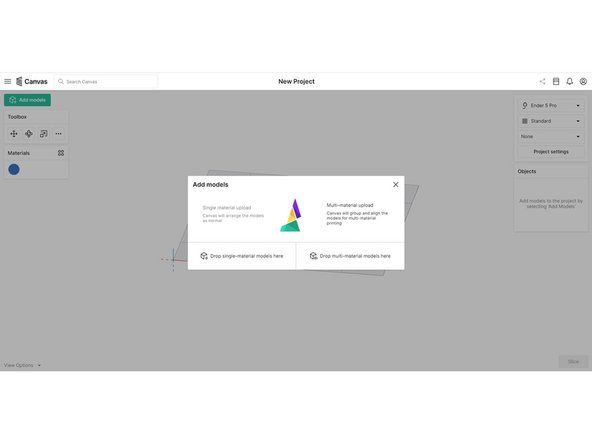

  3. Visit Projects and click New Project.
    • Visit Projects and click New Project.

    • A project is where models can be customized for printing.

    • Creating a new project will first prompt to upload models. If the model is one part, upload as a single-color print. If the model is multiple parts, upload it as a multi-material print.

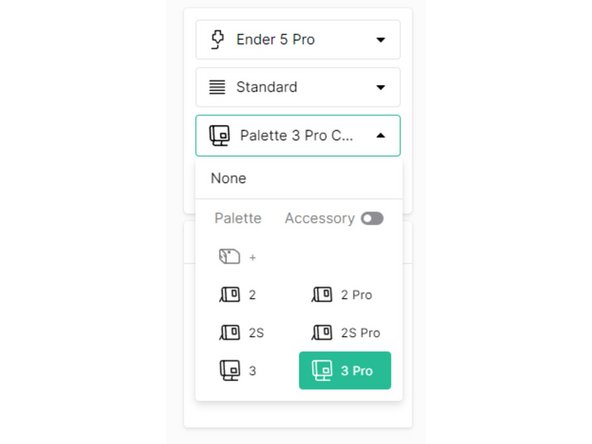

  4. On the top right of the project view, select the desired printer profile, style profile and Palette model. For Palette 2 and 3, connected mode will be selected by default.
    • On the top right of the project view, select the desired printer profile, style profile and Palette model.

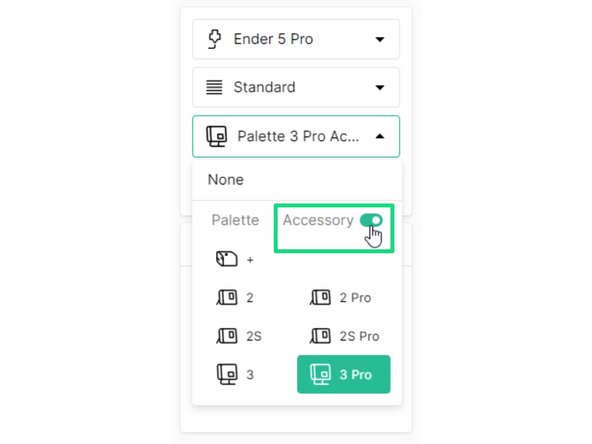

    • For Palette 2 and 3, connected mode will be selected by default.

    • Use the toggle to enable accessory mode for Palette.

    • For Canvas Hub, select Palette 2 in connected mode. With the Canvas Hub linked in Canvas, files can be transferred to it after slicing.

  5. Toolbox: Tools are available for translating/moving, rotation, and scaling. More options in the toolbox include auto-arranging models, laying faces to the bed, dropping models to the bed, and custom supports. Objects: Grouping and Ungrouping Models - Select multiple models in the object browser by holding ‘Shift + Left Click’ on the models. Click the link button on the bottom of the object browser to group or ungroup the models selected.

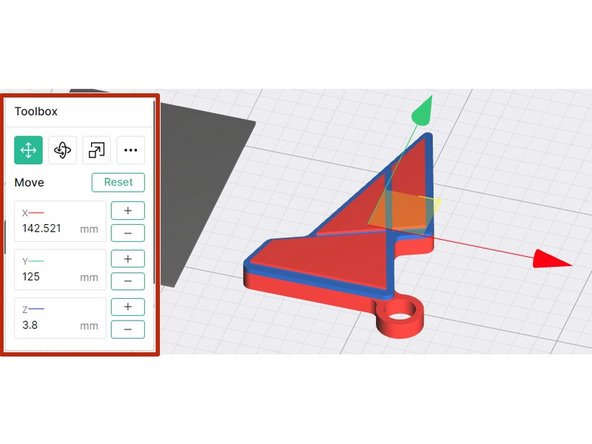

    • Toolbox: Tools are available for translating/moving, rotation, and scaling.

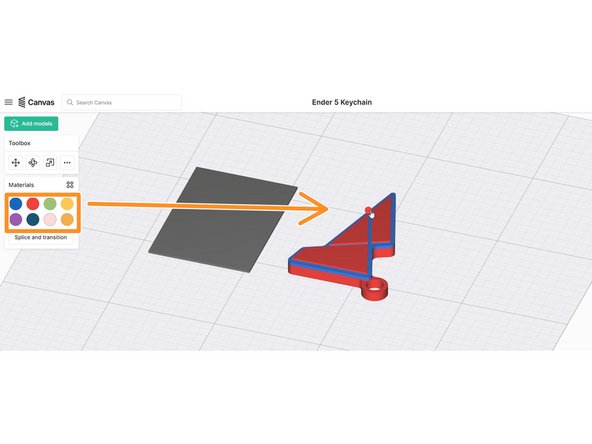

    • More options in the toolbox include auto-arranging models, laying faces to the bed, dropping models to the bed, and custom supports.

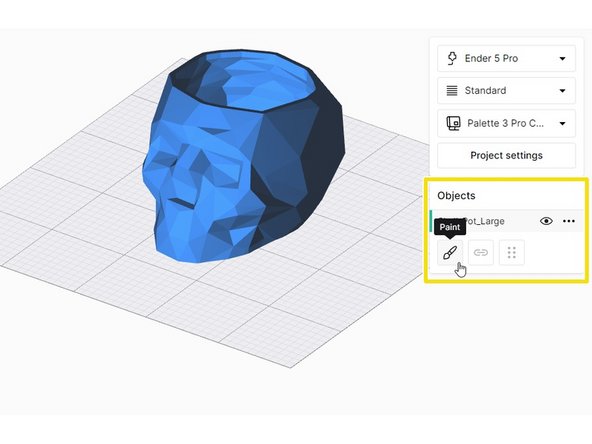

    • Objects: Grouping and Ungrouping Models - Select multiple models in the object browser by holding ‘Shift + Left Click’ on the models. Click the link button on the bottom of the object browser to group or ungroup the models selected.

    • Objects: Duplicating a Model - Click the model you would like to duplicate, and then click the copy button on the bottom left of the object browser.

    • If the model has multiple parts, color the model by dragging and dropping colors from the toolbox onto the model or the file name in the Objects

    • When working with multi-material projects, the transition tower will be auto-generated once colors are selected to each body.

    • If only one STL is uploaded, the model can be customized with painting. To paint a model, select the STL in the object browser and then 'Paint.'

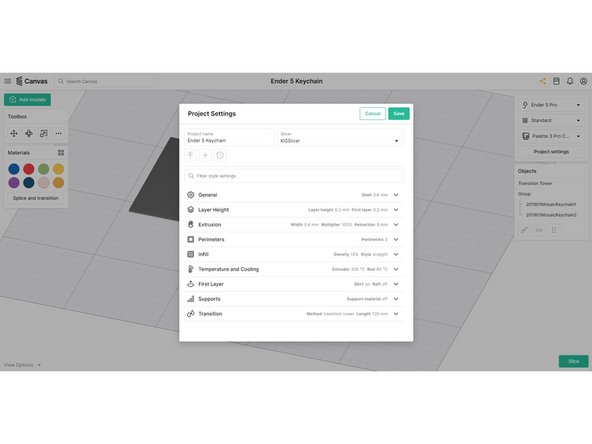

  6. Based on the style profile selected from the projects screen, expanded slicer settings are available.
    • Based on the style profile selected from the projects screen, expanded slicer settings are available.

    • For Palette printing - Transition Settings: The transition length determines how much filament will be purged on the transition tower. Please see variable transition settings to learn more about this setting to help with bleed.

    • Project settings can be:

    • Saved to the existing style profile, overriding the previous settings. This will enable any saved changes to be used next time the style profile is selected.

    • Saved as a new style profile, separate from the one first selected in the project.

    • Reverted to the original style profile if any erroneous changes were made to that project.

    • Slice your project. Preview layers and toolpaths by tool index, path type, layer height, print speed, fan speed and print temperature. For multi-material printing the preview will also display number of splices and pings.

    • Palette 3 Accessory Mode: Download the files, and extract the folder. Transfer the MAFX file to the USB drive for Palette, and transfer the G-Code to the storage device for the printer (e.g. USB key, microSD, SD, WiFi)

    • Palette 3 Connected Mode: If Palette 3 is linked in Canvas, MCFX file can be sent to it directly. Or, the MCFX file can be transferred to Palette's USB drive.

    • Palette 2 Accessory mode: Download the files, and extract the folder. Transfer the MAF file to the SD card for Palette, and transfer the G-Code to the storage device for the printer (e.g. USB key, microSD, SD, WiFi)

    • Palette 2 Connected Mode: If Canvas Hub is set up and Canvas account is linked and connected, send the print directly. The file can also be downloaded and uploaded to Octoprint manually.
