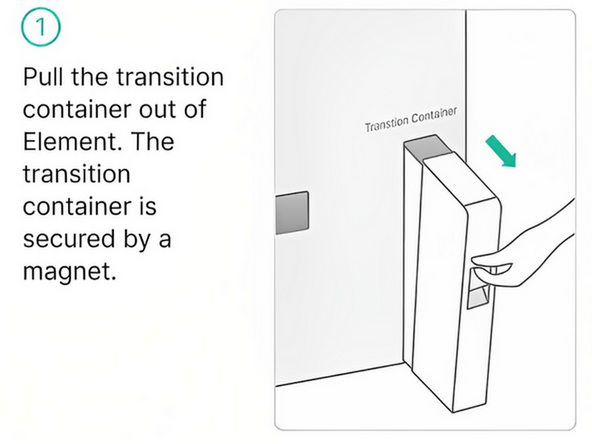

In order to remove or install the Transition System, you will first need to remove the Transition Container from your Element.
-
-
-

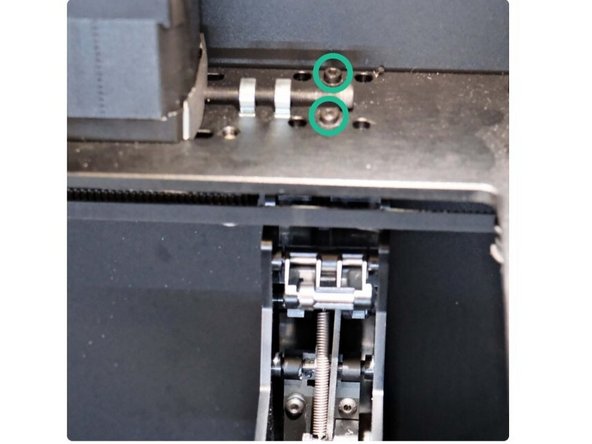

Locate the two fasteners on the XY plate, pictured here.
-

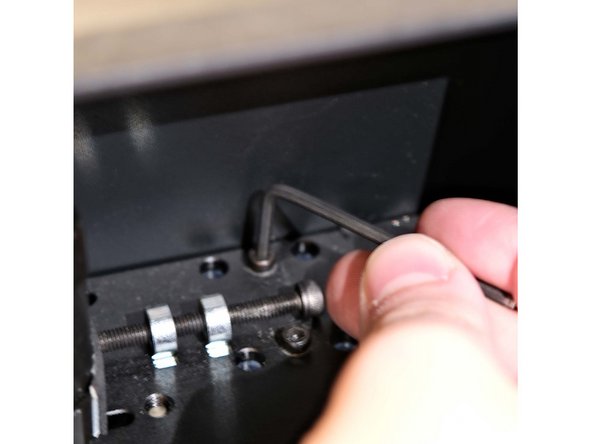

While holding the Transition System, use a 2.5mm hex to loosen and remove the fasteners, setting them aside for later use
-
-
-

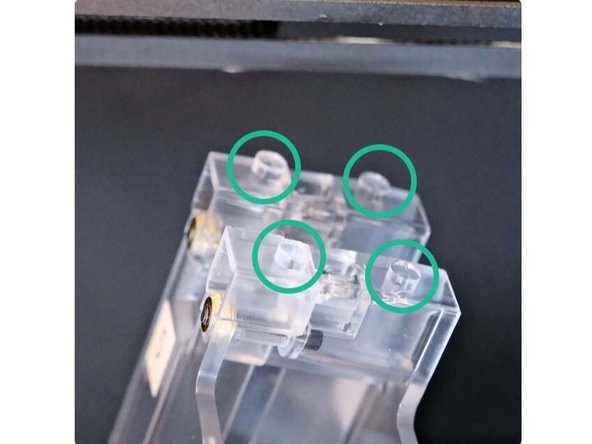

Located the four raised cylinders on top of the TS. These will be used to align with the XY plate in subsequent steps.
-

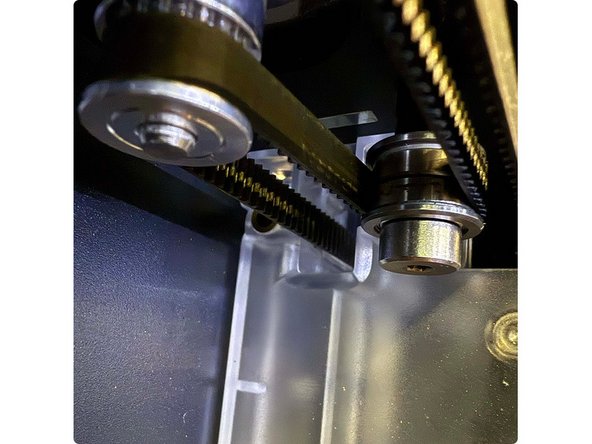

Place the TS in position, ensuring the belt passes through it as pictured.
-

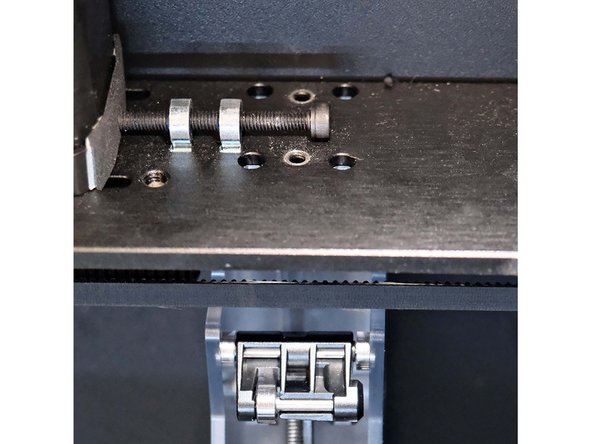

Align and insert the four cylinders into the XY plate and use the fasteners you set aside to secure the TS in place.
-
Next, confirm the TS is firmly attached and does not move or wobble, and reinsert the Transition Container to finish up.
-
