Introduction

With Palette 2's improved hardware, the scroll wheel (encoder) is located within the casing. The encoder is important to help calculate the amount of filament fed through Palette 2 and to maintain calibration throughout a print.

Video Overview

  1. Remove the acrylic buffer cover.
    • Remove the acrylic buffer cover.

    • Use a flat-head screwdriver or tweezers to remove the old scroll wheel rubber. The slot on the left of the scroll wheel can be used for more leverage to lift the rubber away.

    • To put the new scroll wheel rubber in place, stretch the rubber around the edge of the central plastic hub. Press down with your finger along the hub to bring the rest of the rubber down back into place.

  2. Turn Palette 2 off and remove the top lid by gently lifting from the sides. Remove the acrylic ingoing cover by loosening the five thumbscrews counterclockwise. Remove the 4 screws holding the bottom casing to the substructure. Two are located at the top two corners of Palette 2 while the other two are under the ingoing cover.
    • Turn Palette 2 off and remove the top lid by gently lifting from the sides.

    • Remove the acrylic ingoing cover by loosening the five thumbscrews counterclockwise.

    • Remove the 4 screws holding the bottom casing to the substructure. Two are located at the top two corners of Palette 2 while the other two are under the ingoing cover.

    • Once the screws are removed, grip Palette 2 together by the substructure and bottom casing together and flip so that the screen is facing dow

    • Please remove the SD card before completing this step as damage may be caused to your unit if left in. The substructure is connected to the bottom casing by a bundle of wires. Slowly and carefully lift the casing from the bottom up while ensuring that the wire bundle is not pulled abruptly.

    • To fully detach the bottom casing, unplug the cluster of wires labeled "Main PCB" from the electronics tray, leaving only the substructure.

  3. Remove the 2 screws holding the encoder and detach the scroll wheel ("SW") and "Pong" wire bundle. Replace with new encoder and reattach wiring and bolts.

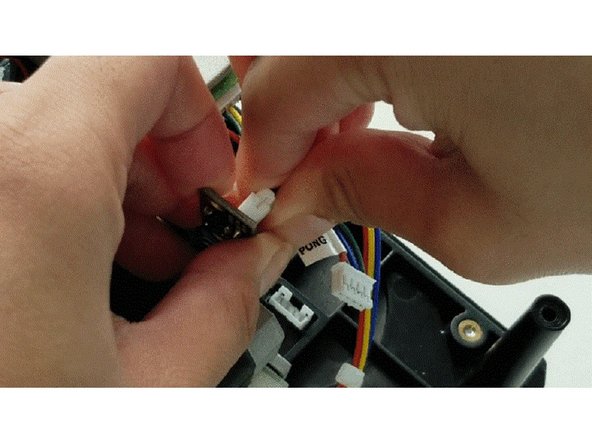

    • Remove the 2 screws holding the encoder and detach the scroll wheel ("SW") and "Pong" wire bundle.

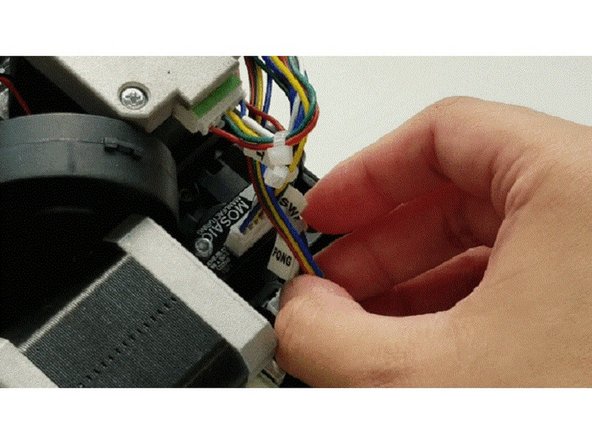

    • Replace with new encoder and reattach wiring and bolts.

Conclusion

If you have any additional questions, please send us a message at support@mosaicmfg.com.

2 other people completed this guide.

Mosaic Support

Member since: 04/02/2020

155 Guides authored

6 Comments

Watch the video to learn how to replace the wheels, not the board. The wheel has deteriorated.

micchan - Reply

We’ll have this updated with the steps for the scroll wheel. To remove the scroll wheel rubber, you can use a pair of tweezer or a small flathead screwdriver to lift it away from the middle plastic hub piece.

Adalyn Ordono -

This says nothing about removing, cleaning or replacing the ScrollWheel.

where will I find that documentation?

Aeolus Scarpitta - Reply

So, with a bit of digging here in “answers” and some risky experimentation, I’ve discovered that once the Encoder chip has been removed, you should flip your P2(s) BACK OVER, so you are looking at the face of the palette, but upside down.

Looking down at the scroll wheel, you can now reach your index finger under the substructure to rest it on the black nub that is the hub mount.

Keep the Palette firmly pressed down against your work surface, as you press UP on the “hub nub” with your index finger.

This SHOULD pop the hub and wheel up allowing you to pick it up and out of its depression.

Aeolus Scarpitta -

Can you please make the encoder availaible for purchase?

Phillip Perkins - Reply
