Introduction

A splice tube may need to be replaced if:

  • A filament jam cannot be removed by any of our recommended methods.
  • The splice tube is no longer capable of producing splices with diameters in the range of 1.6mm-1.9mm despite additional splice tuning.

The Splicer Tube is replaced to help avoid possible splice issues, as the Teflon tube can degrade after exposure to heat for prolonged periods. It's time to change the Splicer Tube if you find that your splices are necking continuously or seem very thin and weak. We recommend using filament that is within +/- 0.03 mm spec of 1.75 mm to create the best quality splices.

Tools

No tools specified.

Parts

Video Overview

  1. Turn Palette 2 off and remove the top lid by gently lifting from the sides. Ensure Splice Core is cool before completing the following steps. Remove the buffer plate by loosening the thumbscrews and lifting the plate. Rotate the cutter wheel so that it is blocking the filament path.
    • Turn Palette 2 off and remove the top lid by gently lifting from the sides. Ensure Splice Core is cool before completing the following steps.

    • Remove the buffer plate by loosening the thumbscrews and lifting the plate.

    • Rotate the cutter wheel so that it is blocking the filament path.

    • If you have filament stuck in the Splice Core, you'll need to remove the acrylic homing cover that sits between the Splice Core and cutter wheel. Simply loosen the thumbscrew holding this cover to the substructure.

  2. Loosen the thumbscrew holding the Splice Core. This thumbscrew is longer than the others (14 mm).
    • Loosen the thumbscrew holding the Splice Core. This thumbscrew is longer than the others (14 mm).

    • When removing the Splice Core, please note that there is an opening underneath where the fan sits. Please avoid dropping anything into this opening as this may damage the fan when powered on.

  3. Once the Splice Core is free, you'll notice that there is a tab on one end. Turn and pull the tab, which will expose the Teflon tube. Push the tube out through the tab. Prepare a new Teflon tube by inserting a piece of filament or rod into the Teflon before reinstalling. This will help prevent any buckling or damage to the tubing.

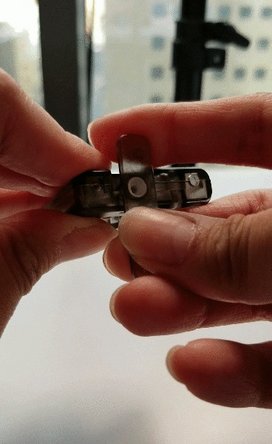

    • Once the Splice Core is free, you'll notice that there is a tab on one end. Turn and pull the tab, which will expose the Teflon tube.

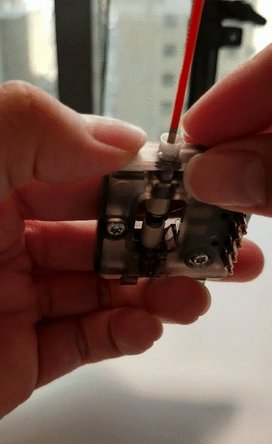

    • Push the tube out through the tab. Prepare a new Teflon tube by inserting a piece of filament or rod into the Teflon before reinstalling. This will help prevent any buckling or damage to the tubing.

    • After the Teflon tube is reinstalled, reverse the steps above and replace the Splice Core.

Conclusion

If you have any additional questions, please send us a message at support@mosaicmfg.com.
